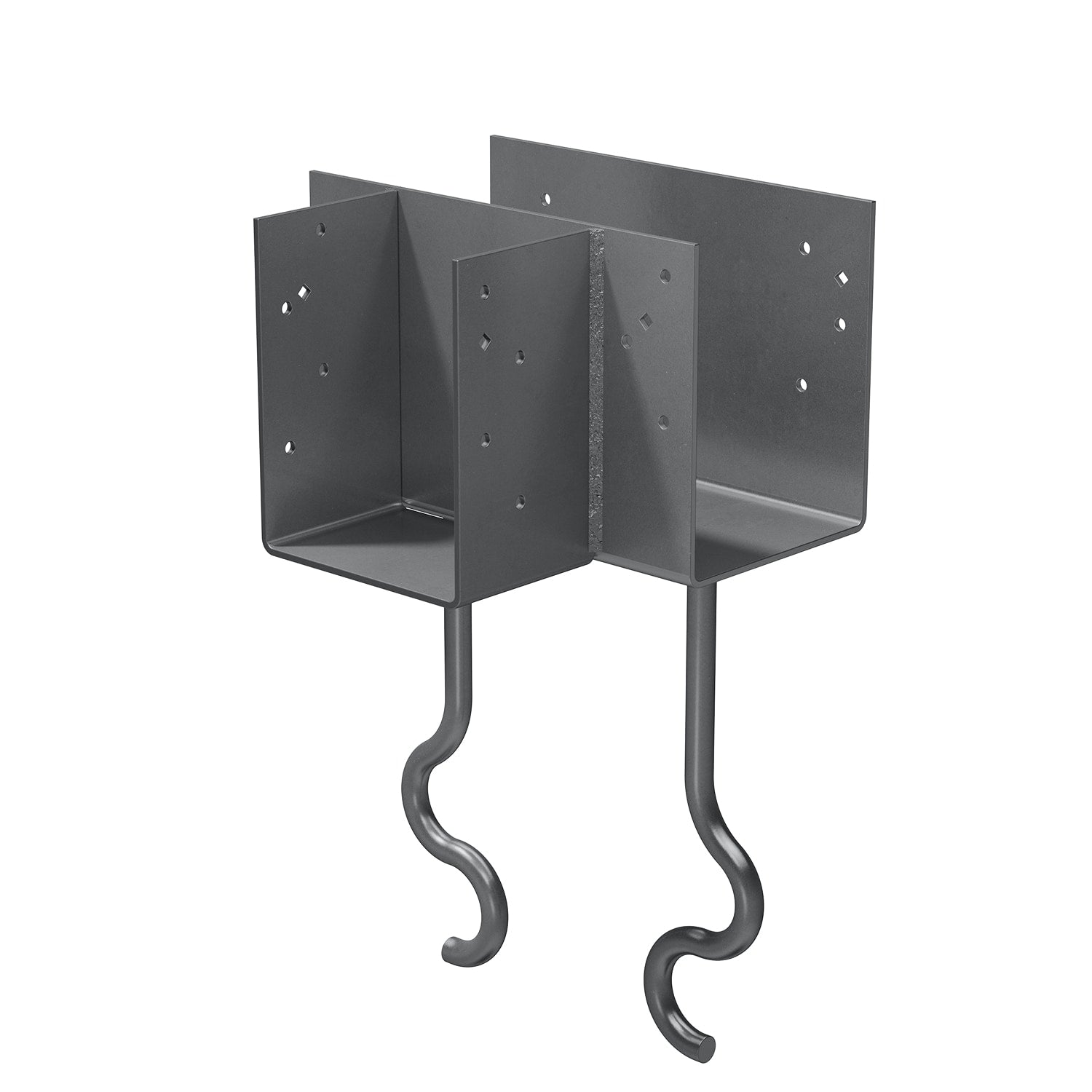

Simpson Strong-Tie CCTQM 5-1/2-in x 11-in Hot-dipped galvanized Wood to concrete (cast in place) Column cap

CCTQM 5-1/2-in x 11-in Hot-dipped galvanized Wood to concrete (cast in place) Column cap. Screws are configured to provide high uplift design values. Certified welds for confidence in strength and loading. SSTB offset allows flush installation to edge of pier. SSTBs spaced to fit standard CMU cells. 5-1/2-in main channel and side stirrup widths. 13-1/2-in main channel length. Made from 7-gauge steel. Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications. Fasten with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws (included), which install with no pre-drilling and feature a corrosion resistant double-barrier coating
